Actual product may differ from what is pictured.
TOPRING

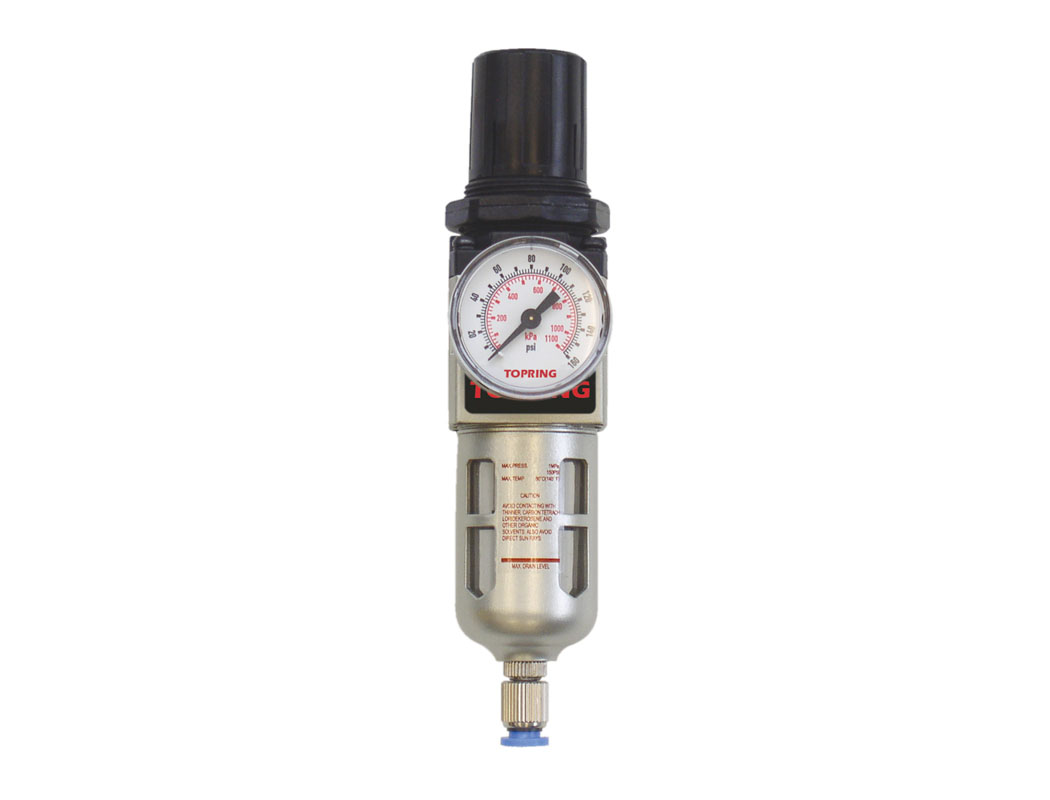

AIRFLO 200 INTEGRATED FILTER/REGULATOR 1/4 SEMI-AUTO

Part Number: 51-250
C$ 69.79
Back Ordered
Add to Cart
Free shipping on orders over $149*. View Details

Product Details

Port Size: 1/4 (F) NPT Maximum Airflow at 100 PSI: 19 SCFM Maximum Working Pressure: 150 PSI Pressure Range: Standard: 5-125 PSI Options: 5-30 PSI 5-60 PSI Working Temperature: 5 to 60 C Filtration: 5 microns Drain: Semi-automatic, 6 Mm O.D. tubing Bowl Capacity: 15 ml Pressure Gauge Port Size: 1/8 (F) NPT Material(s): Body Material(s): Die cast Aluminum Bowl Type:Polycarbonate with steel guard Bowl Guard: Steel Regulation Type: Relieving Filter Element: Polyethylene, 5 microns Deflector & Spinner: ABS O-Rings & Seals: EPDM rubber Regulator Cap: Reinforced nylon Regulator Adjusting Knob: Reinforced nylon Diaphragm: EPDM rubber Poppet Valve: Brass and rubber Regulator Spring: Stainless steel
